Diaphragm For ASCO Dust Collector Pulse Jet Solenoid Valve SCXE353.060

Diaphragm For ASCO Dust Collector Pulse Jet Solenoid Valve SCXE353.060

Diaphragm (Membrane) for ASCO pulse valve SCG353A050, SCXE353.060; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.

Ordering Number of Diaphragm For ASCO Pulse Valve:

Main Dimension of SCXE353.060 Pulse Valve Diaphragm:

Secondary Diaphragm:

Main Diaphragm:

Product Video of SCXE353.060 Pulse Valve Membrane:

Pictures of Pulse Valve Diaphragm Production:

More Related Products For you to choose:

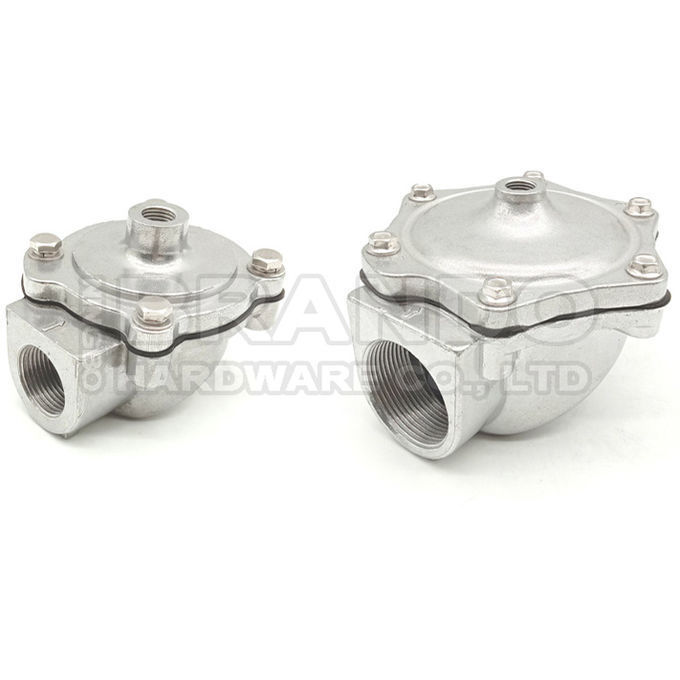

Threaded Type	Remote Pilot Type	Straight Through Type	Submerged Type
