3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse

Brand Name : Brando

Model Number : CA76T

Certification : CE

Place of Origin : China Ningbo

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union, L/C

Supply Ability : 100000 pcs per month

Delivery Time : 4-7 days

Packaging Details : Inner Boxes, Carton, Pallet

Port Size : 3''

Valve Series : T

Valve Structure : Right Angle, Threaded Port

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Coil Voltage : 24VDC, 110VAC, 220VAC

Contact Now

3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse

BRANDO has developed pulse valve and pulse jet valve for reverse pulse jet bag filters, offering precisely engineered valve of market need. Pulse Valve has just one moving part , the Spare diaphragm . The unique springless construction provides fast opening and closing of the valve. The high speed operation besides saving of compressed air,helps to provide shock air wave for dislodging of dust from filter bags. High flow,long life and fast diaphragm action produce reliable and economical operation.

Technical Data of T Series Pulse Jet Valves:

Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Office Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Working pressure
0.35 to 0.85 MPa (5 to 125 PSI)
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR, FKM, EPDM
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet), Threaded Port

Ordering Code of T Series Pulse Jet Valve:

3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse

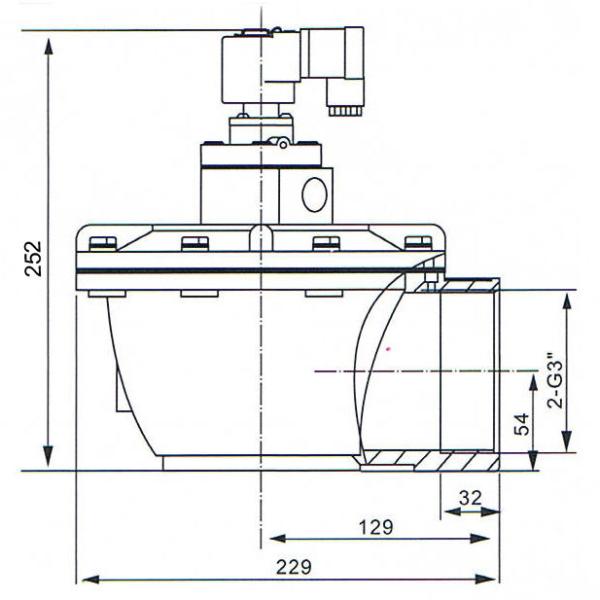

Main Dimension of CA76T Pulse Jet Valve:

3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse

Video of CA76T Pulse Jet Valve:

More Goyen Type Pulse Valves for you to choose:

3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse 3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse 3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse 3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse
T Series DD Series FS Series MM Series
3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse 3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse 3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse 3'' CA76T Goyen Type Threaded Pulse Jet Diaphragm Valve For Baghouse
RCA Series Solenoid Coil Solenoid Armature Diaphragm


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
