Air Woring Medium Pneumatic Power 1 Inch HUANENG Type Pulse Valve Diaphragm Model No.VP25
Pulse valve diaphragm, is the electromagnetic pulse valve air switch, electromagnetic pulse valve diaphragm back control pressure gas quickly discharged. Diaphragm front control pressure gas will lift the diaphragm, open the electromagnetic pulse valve channel into the bit on the injection, the electrical signal disappears, the electromagnetic pilot head of the spring make the moving column immediately reset closed unloading hole.
Electromagnetic pulse valve diaphragm control gas pressure and diaphragm spring force after close the channel, the electromagnetic pulse valve to stop the resistance of injection on the diaphragm hole, when the guide head moving column is raised, when gas pressure unloading, electromagnetic pulse valve diaphragm have the effect of air resistance, when unloading closed cavity, after pressure gas is quickly to make the electromagnetic pulse valve diaphragm close the channel, stop blowing.
| Model | VP25 pulse valve diaphragm |
| Application | Dust System |
| Working medium | Clean Air |
| Diaphragm working life | More than 1 million cycles |
| Name | rubber diaphragm |
| Material | VITON, NBR, HNBR, EPDM, FPM/FKM, SILICONE, CR |
| Feature | Resistance to oil,water, abrasion |
| Standard | Standard or Customized according to your need |
| Color | As per your request |
| Size | standard or as your design |

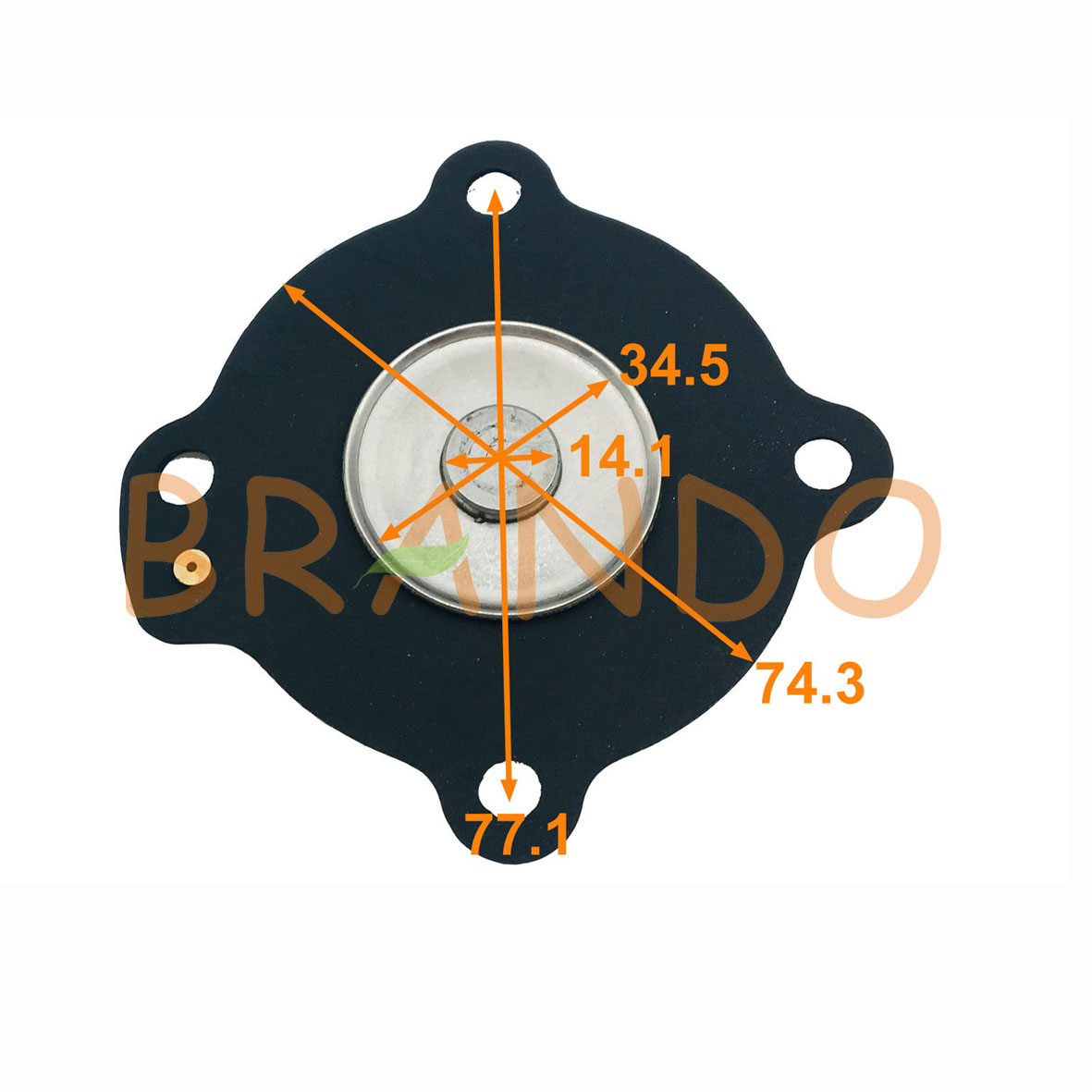

About Date of Diaphragm VP25 for your reference
Application in Bag Dust Collector Sysetems
What role does the solenoid valve diaphragm play in the operation of the dust collector?
Electromagnetic valve diaphragm is also called pulse valve diaphragm, pulse valve diaphragm is a whole piece of high-quality rubber diaphragm formed by the riveting head of the air outlet used to block compressed air pipeline or plug valve, the discharge and unloading hole and the bolt hole with fixed support around, it is the key control component of electromagnetic pulse valve. Pulse valve diaphragm is one of the components in the normal operation of the valve body and the "switch" of the jet path of the dust removal system of the pulse bag filter.
The quality of pulse valve diaphragm directly affects the work stability of the dust removal system of pulse bag filter, and also directly affects the use cost of dust removal equipment. Generally, pulse valve diaphragm has the promise of service life or operation times. The use of high quality pulse valve diaphragm can directly reduce the use cost of dust removal equipment.
Are there air holes on the side and in the middle of the pulse valve diaphragm?
Select pulse valve diaphragm can not simply look at membrane pores in what position, but also look to and supporting the use of pulse valve diaphragm in porosity in what position, if the pulse valve in stomata in the edge edge will use in porosity of the diaphragm to match, if there is no loophole edge of pulse valve should be used with porosity of diaphragm, if you don't corresponding pulse valve and the membrane pores, can cause air flow is not smooth, pulse valve can't work normally, be sure to check carefully!
If you want to know more,pls feel free to contact us
