1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal

Brand Name : Brando

Model Number : SCG353A044

Certification : CE, ISO

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union, L/C

Supply Ability : 10000pcs per month

Delivery Time : 4 to 7 days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1''

Valve Structure : Right Angle, Threaded Port

Valve Operation : Diaphragm Pilot Operated

Diaphragm Material : TPE, NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Coil Voltage : 24VDC, 110VAC, 220VAC

Contact Now

1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal

Series 353 is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user. The valve stands out for its long life, high peak pressure and extended temperature range.

Technical Data of Threaded Pulse Jet Valves:

Model
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
Voltages
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Number
1
2
Working Pressure Range
0.35 to 0.85 MPa
Diaphragm Material
TPE, NBR, FKM
Fluids
Air
Valve Structure
Right Angle, Threaded Port

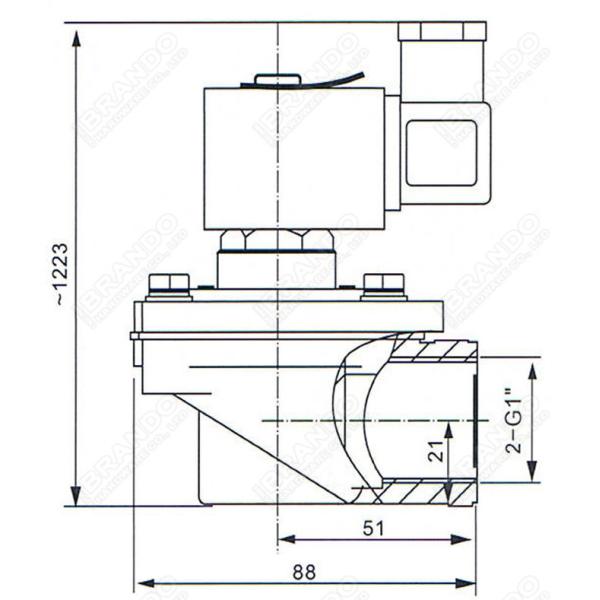

Main Dimension of SCG353A044 Pulse Jet Valve:

1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal

Video of SCG353A044 Pulse Jet Valve:

More ASCO Type Pulse Valves for you to choose:

1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal 1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal 1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal 1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal
Threaded Type Remote Pilot Type Straight Through Type Submerged Type
1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal 1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal 1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal 1'' SCG353A044 ASCO Type Diaphragm Pulse Jet Valve For Dust Removal
Diaphragm Solenoid Coil Solenoid Armature Pulse Controller
