SBFEC Type DMF Diaphragm Valve Repair Kit Solenoid Armature DMF-Z DMF-ZM DMF-Y DMF-ZF DMF-T

SBFEC Type DMF Diaphragm Valve Repair Kit Solenoid Armature DMF-Z DMF-ZM DMF-Y DMF-ZF DMF-T

Brando is a professional manufacturer of armature assembly in China. Using specialized materials for production, Brando's line of armatures boast exceptional quality and precision. Even after long hours of usage and continuous operation, the products does not accumulate magnetism allows fast separation. Each cycle of operation only takes 0.02 second, and can still function normally under extreme high pressure. Armature assembly application: pneumatic solenoid valve, solenoid control valve, solenoid valve, automobile parts, and so on.

YouTube video of SBFEC Type Old Version Solenoid Valve Repair Kit:

Main dimension of Old Version SBFEC Type Pulse Valve Repair Kit:

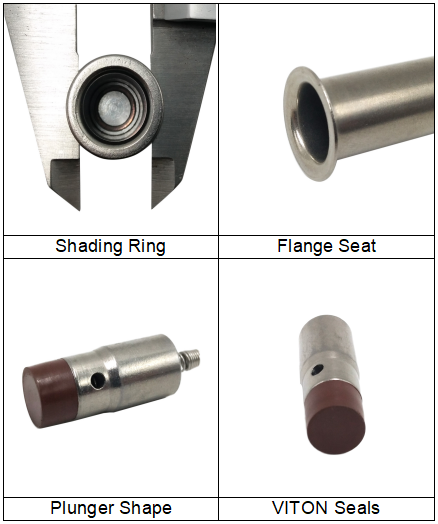

Details display of SBFEC Type Old Version Solenoid Valve Rebuild Kit:

Technical parameters of SBFEC Type Diaphragm Valve Solenoid Kit:

Factory production of Solenoid Valve Repair Kit Armature Plunger:

Brief Introduction of Solenoid Valve Armature Assembly:
The armature assembly or anchor system is the valve piece of solenoid valve system. An internal stainless steel poppet moves up and down to seal on the top and bottom valve seats. We provides armatures in multiple sizes depending on the application’s flow requirement. The tube sizes range from 7.0mm to 23.0mm and flow ranges from 12 l/min to 165 l/min. The valve seat orifice sizes ranges from 0.6mm to 4.0mm and higher for special applications. Choose the correct material for the application as we offer tubes in brass and stainless steel.

Four common pneumatic functions are available which include:

• 2/2 normally closed(NC)
• 3/2 normally closed(NC)
• 2/2 normally open(NO)
• 3/2 normally open(NO)

The seals in the poppet are FKM (standard), but NBR, HNBR, MVQ, EPDM are available for different media and temperatures. Most of our armatures are designed to accept AC and DC voltages. Some armatures are DC only for low watt applications.

We offers flexibility as the connection to the seat cavity can be with a thread/o-ring seal style or o-ring flange style that requires a mounting plate.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
