TPE Solenoid Valve Repair Kit Diaphragm Membrane For 2" AE1450B AE2450R 2 1/2" AE1460B AE2460R Solenoid Valve
The pulse valve diaphragm divides the pulse valve into two air chambers. When the electromagnetic pulse valve is connected with clean compressed air in the dust cleaning system of the pulse bag filter, the compressed air enters into the rear air chamber through the throttle hole. At this time, the pressure of the rear air chamber presses the diaphragm against the air outlet of the valve, and the pulse valve is in the closed state. The pulse controller outputs signals to move the armature of the pulse valve, and the rear air chamber of the valve discharges When the air hole is opened, the rear air chamber will lose pressure rapidly, so that the diaphragm moves backward, and compressed air will be injected through the outlet of the valve. When the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the armature of the electromagnetic pilot head of the pulse valve resets, and the vent hole of the rear air chamber is closed. When the pressure of the rear air chamber increases, the diaphragm of the pulse valve is close to the outlet of the valve, and the pulse valve is in the closed state, and the compressed air will be injected When the blowing is stopped, the length of the blowing time is controlled by the controller.
The electromagnetic pulse valve is the "switch" of the air injection circuit of the dust cleaning system of the pulse bag filter, and the diaphragm in the valve body is controlled by the pulse controller to vibrate into the pulse "impulse" on the street for dust cleaning. The area controlled by the back of the diaphragm is larger than that controlled by the front, and the air pressure force is large.
The electric signal is input by the pulse controller, which makes the electromagnetic pilot head attractive and transportable, and opens the unloading hole. The pressure gas controlled by the diaphragm is discharged rapidly. The pressure gas controlled in front of the diaphragm lifts the diaphragm, opens the channel of the electromagnetic pulse valve and blows into the street, the electrical signal disappears, the spring of the electromagnetic pilot head causes the moving column to immediately reset and close the unloading hole, the pressure of the gas controlled in the back of the diaphragm and the spring force cause the diaphragm to close the channel, the electromagnetic pulse valve stops blowing, and the resistance hole on the diaphragm.

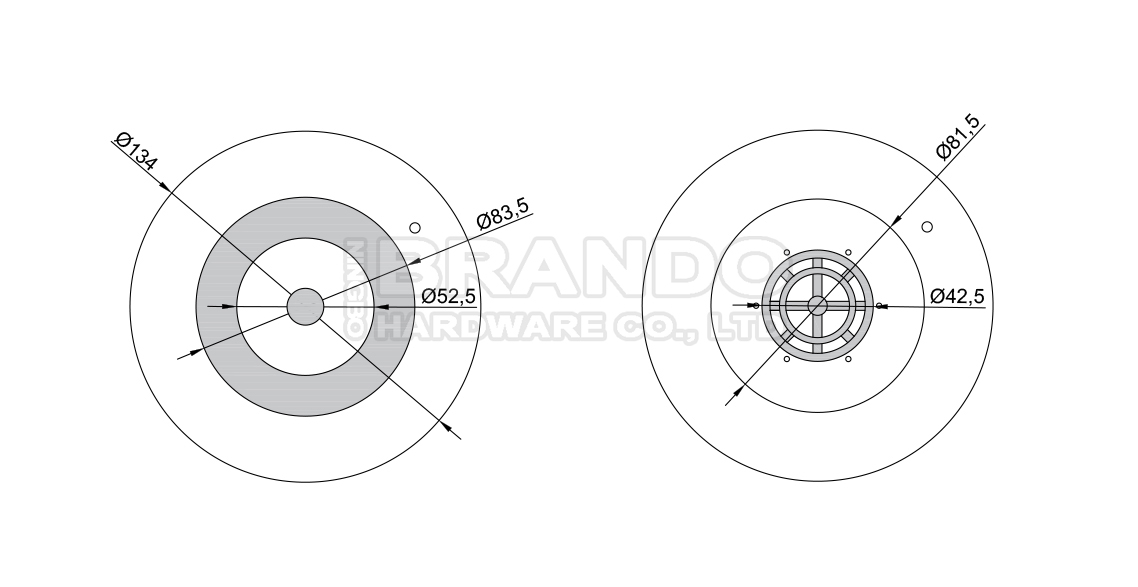

Main dimension of Norgren Type Pulse Valve Diaphragm Kit:
Available Models of Diaphragm Valve Repair Kits For Norgren Pulse Valves:
YouTube video of Norgren Diaphragm Repair Kit For Norgren Pulse Valve:
Factory Production Pictures of Solenoid Valve Diaphragm Kits:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility
5. EPDM, Viton all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
