SBFEC Type New Version Solenoid Stem DMF Series Dust Collector Pulse Valve Armature Repair Kits FKM Seals
This solenoid armature is the main part of DMF series dust collector solenoid valve. The solenoid stem can be replacement of SBFEC type solenoid pulse valve. The Electrical signal application to the plunger , control the spring for controlling the fluid go or not go. We are a professional manufacturer of armature assembly in China. Using specialized materials for production, Brando's line of armatures boast exceptional quality and precision. Even after long hours of usage and continuous operation, the products does not accumulate magnetism allows fast separation.
Position And Way:2/2 Way
Voltage: AC, DC All Available
Mounting Type:Flange
Guide Tube And Outer Diameter:13.5mm
Installation Height For Coil:50.8mm
Plunger Seal For Orifice Diameter:10.5mm
Application:DMF Series Pulse Valve
Guide Tube Material:Stainless Steel
Repair Kits Armature Assembly Overall Dimensions for SBFEC Type pulse valve:
Technical Data About SBFEC Type Pulse Valve stem:
| Model | BAPC213553538 |
| Type | 2/2 Way |
| Function | Normally Closed (NC) |
| Core Tube Material | 304 Stainless steel |
| Moving Core Material | Stainless steel 430FR |
| Seal Material | NBR, HNBR, FKM, EPDM, Silicone, all available |
| Suitable Coil Hole Diameter | 13.5mm |
| Suitable Coil Height | 50.8mm |
| Inlet Orifice Max | 10.5mm |
| Voltage | DC, AC |
| Connection | Flange |

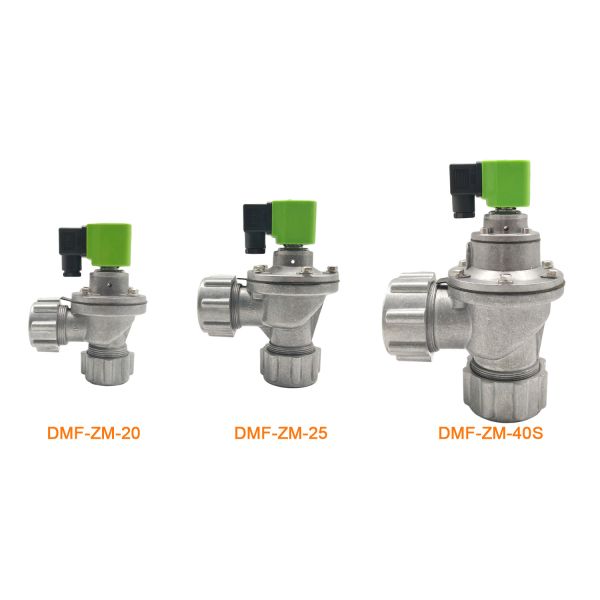

| Application Examples | DMF-Z, DMF-ZM, DMF-Y, DMF-T Series Pulse Valve |
Material:
Plunger: stainless steel
Guide Tube: Stainless Steel 304
Spring; Stainless Steel 304
Rubber: NBR, HNBR, FKM, EPDM, Silicone, all available
Retaining round base: Aluminium
Clip: stainless steel
Application:
Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut can be provided if has demands.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
