Joil Type Solenoid Stem Plunger For JISI40 JISI6 JISI80 Pulse Diaphragm Valve

Joil Type Solenoid Stem Plunger For JISI40 JISI6 JISI80 Pulse Diaphragm Valve

This Solenoid armature assembly can be used in JOIL type solenoid pulse valve. Like JISI40 JISI6 JISI80 Pulse Diaphragm Valve. 1 Set Solenoid Stem including Plunger Packing, Plunger, Plunger Spring and Core Tube. The pulse valve is mainly used in the environmental protection dust removal industry. It is controlled by a pilot valve such as electromagnetic or pneumatic. It can open and close the high-pressure gas source to generate a pulse valve in an instant.

Guide Tube Outer Diameter:12.8mm
Installation Height for Coil Assembling:51.1mm
Plunger Seal for Orifice Diameter:9.0mm
Guide Tube Material:Stainless Steel
Seal Material:NBR
Mounting Type:Flange
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close
Application:JICI, JISI, JIFI, JIHI Pulse Valve

Youtube Video About JORL Solenoid Plunger Assembly:

Dimension of JOIL Type Solenoid Stem:

Specification:

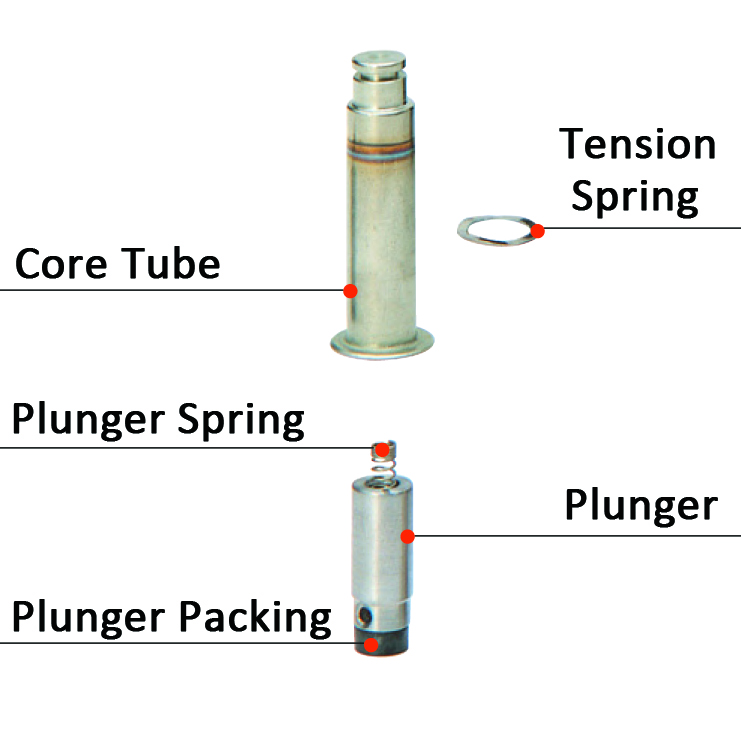

Deconstruction:

Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut provided if has demands.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
