Automobile Solenoid Valve 3/2 Way NC SS304 Armature Assembly

Automobile Solenoid Valve 3/2 Way NC SS304 Armature Assembly

Brando is a solenoid valve amrature assembly professional manufacturer and exporter in Ningbo, China.

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly,
2. Water Solenoid Valve Armature Assembly,
3. Pneumatic Solenoid Valve Armature Assembly,
4. Refrigeration Solenoid Valve Armature Assembly,
5. Injector Rail Armature Assembly,
6. Air-Jet Loom Solenoid Valve Armature Assembly,
7. House Appliances Solenoid Valve Armature Assembly,
8. Automobile Solenoid Valve Armature Assembly,
9. Medical Solenoid Valve Armature Assembly, etc.

Main dimension of Solenoid Valve Armature Assembly:

Details of Solenoid Valve Armature Assembly:

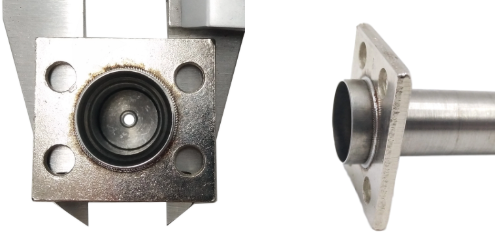

3/2 Way NC Tube Seat

Plunger Slot NBR Seal

Technical data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Solenoid Valve Armature Assembly Categories:

The armature assembly can usually be categorized according to the number of interface positions, switching functions and connection.

1. Port / positions: 2/2 way or 3/2 way (The first figure shows the number of ports, the second shows the number of positions)
2. Function: Normally closed (NC), or normally open (NO)
3. Connection: Thread or flange

How does an armature assembly work?

When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core.

When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
