31400 V10-C3C Twin Screw Granulator Solenoid Coil 220v Ac

31400 V10-C3C Twin Screw Granulator Solenoid Valve Electrical Coil

This 31400 solenoid valve coil is applied to ERA SIB Type WF0.5H/WF0.6H/WF0.9/WF1/JA1BXN/W0.6/EN52060/EN52081-06 Solenoid Valves. It is made of thermosetting material. The most common material for thermosetting of electromagnetic coil is BMC material. It is a material with high temperature resistance and waterproof preference and has good resistance. High-pressure capability, while electromagnetic coil thermoplastics are most commonly PA66 glass-containing materials, which are faster to mold and relatively lower in cost than BMC. Our solenoid valve coils are protected to IP65. You need to provide us with a series of solenoid valve coil data, such as the pressure of the solenoid valve coil, the material of the solenoid valve body, the interface size and the media, etc., and then we will recommend the most suitable product for you.

Technical data of ERA SIB Type 31400 DC24V/AC220V Solenoid Coils:

Overall dimension of ERA SIB Type WF/0.5HWF0.6H Solenoid Coils:

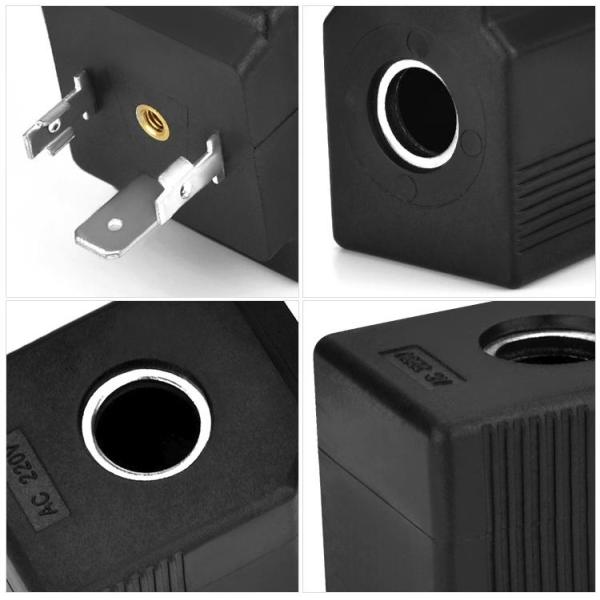

Detail enlargement of WF0.9/WF1/JA1BXN electromagnetic Valve Coils:

Brando offers a wide range of solenoid valve coils, which designed into various types, mainly features encapsulated coils, including thermoplastic and thermosetting. Our coils have the characteristics of High Performance, High Reliability and Long Service Life, can be used for Different Applications. We also provide excellent Customized Service.

Solenoid Coil Main Features:

1. Heat resistant bobbin moulded with thermoplastic polyester material;
2. High quality Enameled copper wire, F, H, N different insulation class for choose;
3. Built-in magnetic yoke, made by low carbon iron;
4. Encapsulation with high quality specially designed thermosetting & thermoplastic material.

Solenoid Coil Main Structure:

The conventional structure of a solenoid valve coil includes: Framework, Enameled copper wire, PIN, Yoke and Encapsulation. In addition, according to the actual use, there will be a magnetizing guide ring, a rectifier bridge be used for rectifying, etc.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
