3/4'' Diaphragm Valve JISI20 JISR20 JICR20 Membrane Repair Kit
This is diaphragm valve repair kit for Joil 3/4'' JICI 20, JICR 20, JISI 20, JISR 20. It is made of NBR (Nitrile) with Nylon seat. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity. If you have interests in other diaphragm repair kits, pls feel free to contact me, thanks.
Features:
1. A rubber body to protect from corrosion;
2. Compact size for ease of installation;
3. Robust Dust cleaning ability;
4. Excellent Open/close durability to withstand consistent cycles of opening and closing.
YouTube video of Diaphragm Repair Kit For 3/4'' Joil Pulse Valve:

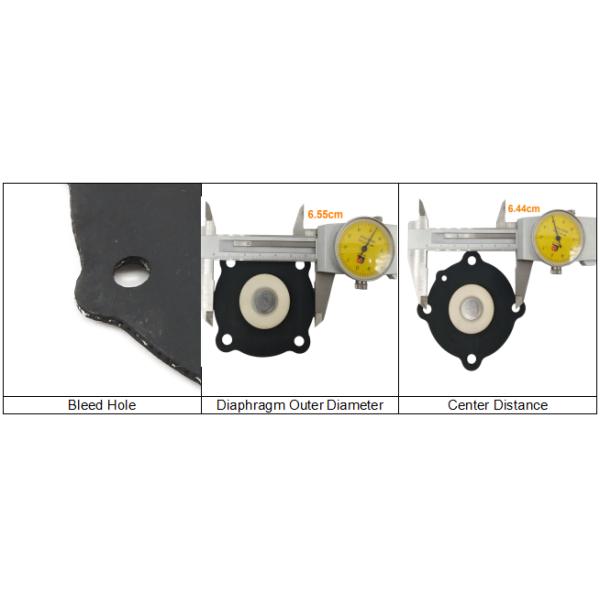

Main dimension of Diaphragm For JICI 20 JICR 20 JISI 20 JISR 20:
Details display of Membrane For 3/4 Inch JOIL Diaphragm Valve:
Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:
| | | | | |
| | | | JICI 20, JICR 20, JISI 20, JISR 20 | |
| | | | JICI 25, JICR 25, JISI 25, JISR 25 |
| | | | JICI 40, JICR 40,
JISI 40, JISR 40, JIFI 40, JIFR 40 |
| | | | JISI 50, JISR 50, JIFI 50, JIFR 50 |
| | | | JISI 65, JISR 65,
JIFI 65, JIFR 65 |
| | | | JISI 80, JISR 80, JIHI 80, JIHR 80 |
| | | | |
Tips: The related solenoid coils and armature assembly are all supplied.
Factory Production Pictures of Solenoid Valve Diaphragm Kits:
Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.
Applications: The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
