Double Rod Guide Air Cylinder Pneumatic CXSM6-10 SMC Type

Name: Double Rod Guide Air Cylinder Pneumatic CXSM610 SMC Type
Brand: BRANDO
Price: 1 USD

Brand Name : BRANDO

Model Number : CXSM6-10

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-7 work days

Packaging Details : Inner Box, Carton, Pallet

Bore Size (mm) : 6, 10, 16, 20, 25, 32

Standard Stroke (mm) : 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100

Max Operating Pressure : 0.7 Mpa

Cushion : Rubber Bumper

Port Size : M5x0.8, 1/8''

Bearing Type : Slide Bearing

Contact Now

Double Rod Guide Air Cylinder Pneumatic CXSM6-10 SMC Type

SMC Type CXS Series Dual Rod Air Pneumatic Cylinder is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches.

1. Ball bushing bearings and slide bearings are standard for all series.
2. Can be mounted from 3 directions.
3. Workpieces can be mounted on 3 surfaces.
4. Air cushion only minimally adds to full length dimension.

Specifications of CXS Series Pneumatic Cylinder:

Double Rod Guide Air Cylinder Pneumatic CXSM6-10 SMC Type

Stroke of CXS Series Pneumatic Cylinder:

Double Rod Guide Air Cylinder Pneumatic CXSM6-10 SMC Type

Ordering Code of CXS Series Pneumatic Cylinder:
Double Rod Guide Air Cylinder Pneumatic CXSM6-10 SMC Type

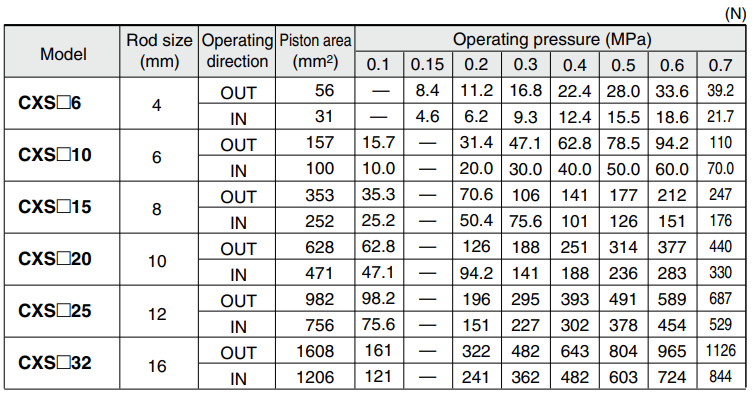

Theoretical Output of CXS Series Pneumatic Cylinder:

Double Rod Guide Air Cylinder Pneumatic CXSM6-10 SMC Type

Brando Supply Pneumatic Air Cylinders:

Airtac Type Pneumatic Cylinder	Festo Type Pneumatic Cylinder	SMC Type Pneumatic Cylinder

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
