1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine

Brand Name : Brando

Model Number : 321H35, 321H36

Certification : CE, ISO

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, PayPal, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 4-8 days

Packaging Details : Inner boxes, Carton, Pallet

Working Medium : Water, Air, Gas

Port Size : 1/2'', 3/4''

Orifice Size : 15mm

Operation Mode : 2 Way, Normally Closed

Operation : Diaphragm Pilot Operated

Body Material : Brass

Pressure Range : 1.5 to 50 Bar

Voltages : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Contact Now

1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine

Product Features of High Pressure Solenoid Valve:
1. Operating pressure up to 5 MPa, Media temperature range from -5℃ to 80℃, Port size is 1/2'', 3/4''.
2. Pilot operated, fast response.
3. Suitable for media of water, gas, acetylene, liquefied gas etc, with kinematic viscosity ≤ 1 mm²/s.
4. Coil are encapsulated with thermoset plastics.
5. Usually applied to the bottle blowing machines.

Technical Data of High Pressure Solenoid Valve:​

Port Size
1/2'', 3/4''
Orifice Size
15mm
Function
2 Way, Normally Closed
Operation
Diaphragm Pilot Operated
Working Medium
Water, Air, Gas
Working Pressure Range
1.5 to 50 Bar
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

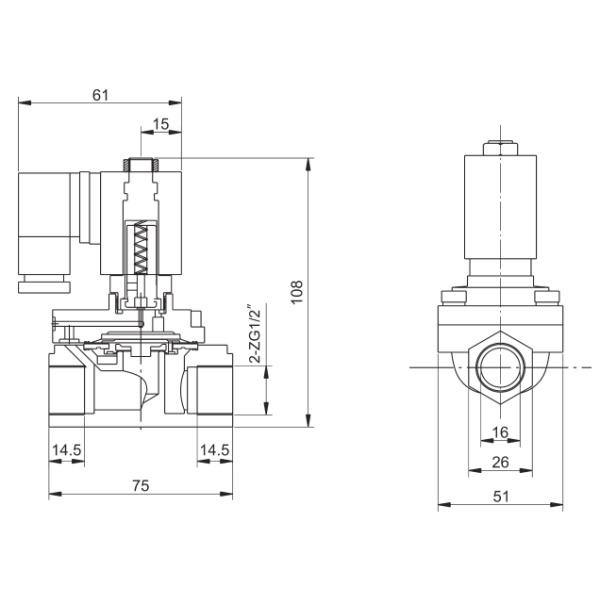

Main Dimension of High Pressure Solenoid Valve:

1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine

Brando Solenoid Valve Factory Production Video:


More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves
1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine
MAX 50 bar MAX 50 bar MAX 50 bar MAX 50 bar
1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine
MAX 50 bar MAX 70 bar MAX 120 bar MAX 200 bar

Stainless Steel Solenoid Valves
1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine
MAX 50 bar MAX 50 bar MAX 50 bar MAX 100 bar
1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine 1/2'' 15mm 321H36 Brass Solenoid Valve For Bottle Blowing Machine
MAX 120 bar MAX 160 bar MAX 200 bar MAX 300 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
