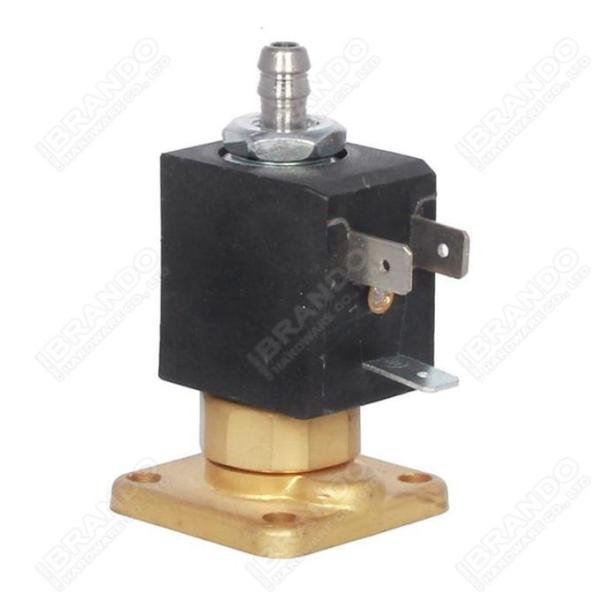

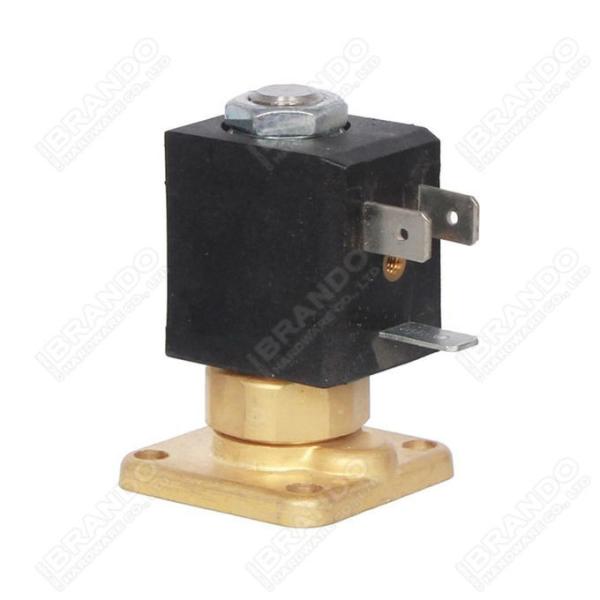

ODE Type 3 Way Brass Solenoid Valve 31A1AV10 31A1AV15 31A1AV20 31A1AV25

Name: ODE Type 3 Way Brass Solenoid Valve 31A1AV10 31A1AV15 31A1AV20 31A1AV25
Brand: BRANDO
Price: 1 USD

Wholesale ODE Type 3 Way Brass Solenoid Valve 31A1AV10 31A1AV15 31A1AV20 31A1AV25 from china suppliers

Brand Name : BRANDO

Model Number : 7FA

Certification : CE, ISO

Place of Origin : China, Ningbo

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Orifice Size : 1.6mm, 2.5mm, 3mm, 4mm

Connection : Sub Base

Function : 3 Way Normally Closed, 3 Way Normally Open

Operation : Direct Acting

Body Material : Brass

Seal Material : NBR, EPDM, VITON

Pressure Range : 0 to 15 bar

Voltages : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

ODE Type 3 Way Brass Solenoid Valve 31A1AV10 31A1AV15 31A1AV20 31A1AV25

Product Features:

1. Working Medium: Air, Water, Steam, Gas, Oil, etc
2. Working Pressure Range: 0 to 1.5 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), VITON (-30 to +150℃)
4. Connection: Sub Base
5. Body Orifice Size: 1.6mm, 2.5mm, 3mm, 4mm
6. Top Orifice Size: 1.5mm
7. Body Material: Brass, Stainless Steel
8. Seal Material: NBR, EPDM, VITON
9. Function: 3 Way Normally Closed, 3 Way Normally Open
10. Operation: Direct Acting
11. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Product Video:

Technical Data:

ODE Type 3 Way Brass Solenoid Valve 31A1AV10 31A1AV15 31A1AV20 31A1AV25

Model	Body Orifice Size	Top Orifice Size	Cv	Min Pressure	Max Pressure		Seal Material	Body Material
Model	Body Orifice Size	Top Orifice Size	Cv	Min Pressure	AC (22VA)	DC (17W)	Seal Material	Body Material
7FA16	1.6mm	1.5mm	0.25	0MPa	1.5MPa	1.5MPa	NBR EPDM VITON	Brass Stainless Steel
7FA25	2.5mm	1.5mm	0.25		1.2MPa	1.2MPa
7FA30	3.0mm	1.5mm	0.35		0.9MPa	0.9MPa
7FA40	4.0mm	1.5mm	0.5		0.6MPa	0.6MPa

BRANDO Solenoid Valves Production Video:

More Coffee Machine Solenoid Valves for you to choose:

Brass Solenoid Valve

Plastic Solenoid Valve

Manifold Solenoid Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
