2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A

  • 1
  • 2

Brand Name : BRANDO

Model Number : 6013

Certification : CE, ISO

Place of Origin : China, Ningbo

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 50000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Inner Box, Carton, Pallet

Port Size : 1/8'', 1/4''

Orifice Size : 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm

Function : 2 Way Normally Closed

Operation : Plunger Direct Acting

Body Material : Stainless Steel

Seal Material : NBR, EPDM, FKM

Temperature Range : NBR: -10 to +80 ℃, EPDM: -30 to +120 ℃, FKM: -30 to +150 ℃

Voltage : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A

The 6013 solenoid valve is a direct operated 2/2-way solenoid valve with a compact design, which is available in both NC and NO versions. It is a cost-effective valve with a universal application for neutral and clean liquids, gases and vapors. Some versions of this valve also allow for use in mildly acidic and alkaline solutions. Diverse body and seal material combinations along with a variety of certifications, provide for a universal solution for your application.


Technical Data of 6013 Solenoid Valve:

2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A

Model
Port Size
(Inch)
Orifice Size
(mm)
Kv
Pressure Range (bar)
Medium Temperature (℃)
Dimension
A
F
K
6013
1/8''
1.5
0.05
0 to 40
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
32
32
66
2
0.12
0 to 25
2.5
0.16
0 to 16
3
0.23
0 to 10
1/4''
1.5
0.05
0 to 40
46
32
70
2
0.12
0 to 25
3
0.23
0 to 10
4
0.3
0 to 4
5
0.35
0 to 2
6
0.55
0 to 1.5
Sub-base
(SFB)
1.5
0.1
0 to 40
32
32
66/68
2
0.15
0 to 25
3
0.23
0 to 10


BRANDO Solenoid Valve Production Video:

More Solenoid Valves for you to choose:

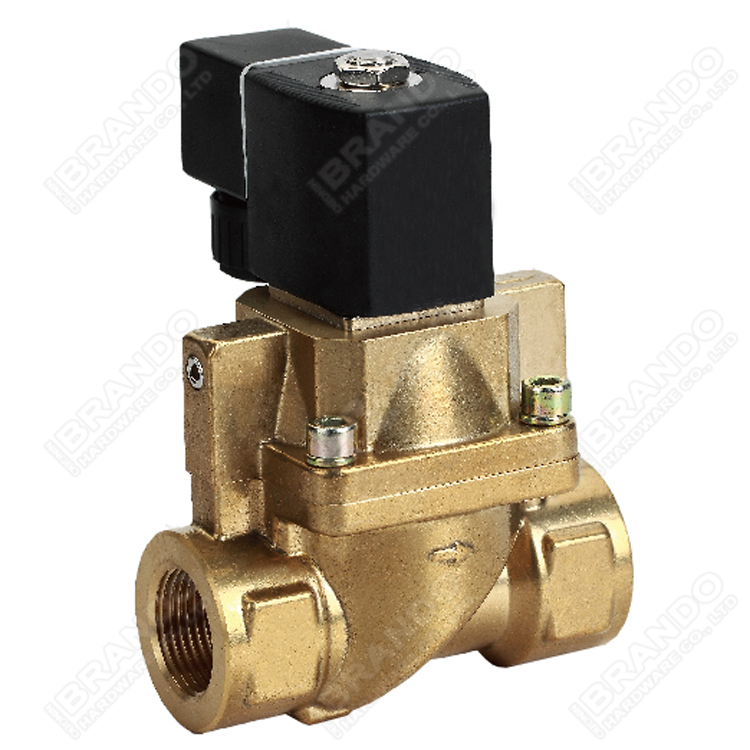

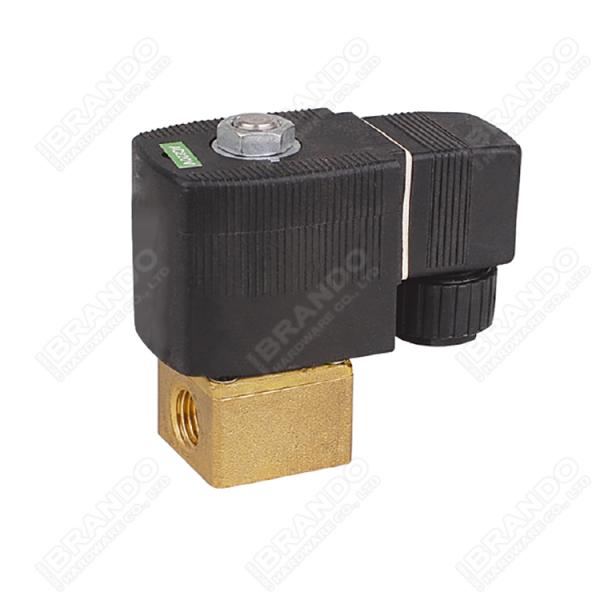

Brass Solenoid Valve
2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A 2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A 2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A 2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A
2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A 2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A 2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A 2/2 Way Direct Acting Stainless Steel Solenoid Valve 6013 A

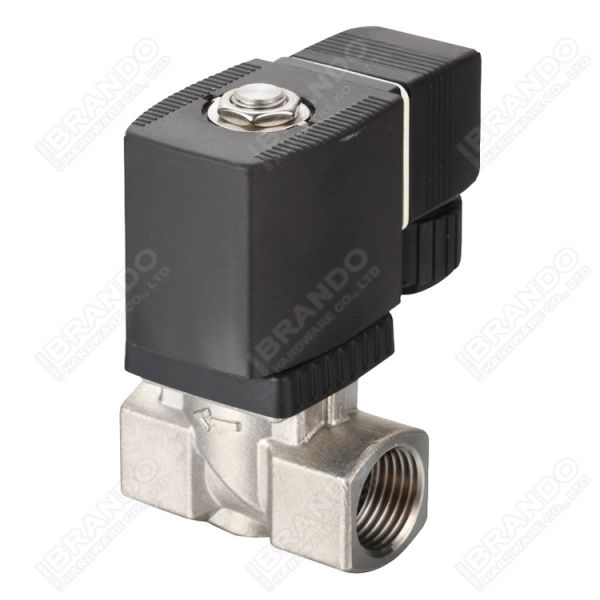

Stainless Steel Solenoid Valve
