K2016 K2017 Diaphragm For Dust Collector Pulse Jet Valve RCAC20T3 RCAC20ST3 RCAC20DD3

Name: K2016 K2017 Diaphragm For Dust Collector Pulse Jet Valve RCAC20T3 RCAC20ST3 RCAC20DD3
Brand: Brando
Price: 1 USD

Wholesale K2016 K2017 Diaphragm For Dust Collector Pulse Jet Valve RCAC20T3 RCAC20ST3 RCAC20DD3 from china suppliers

Brand Name : Brando

Model Number : K7600, K7601

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, PayPal

Supply Ability : 100000 sets per month

Delivery Time : 4 to 7 working days

Packaging Details : Plastic bag, Box, Carton, Pallet

Product Name : Pulse Valve Diaphragm

Ordering Number : K2016

Diaphragm Material : NBR, Viton

Seat Material : Rubber, Nylon

Fitted Pulse Valve Model : RCAC20T3, RCAC20ST3, RCAC20DD3, RCAC20FS3

Seat OD : 37mm

Diaphragm OD : 72mm

Contact Now

K2016 K2017 Diaphragm For Dust Collector Pulse Jet Valve RCAC20T3 RCAC20ST3

Products Description

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

 Options for your customization:
Diaphragm Material: TPE, NBR, EPDM, FKM
Seat Material: Nylon, Rubber, PTFE
Diaphragm Color: Black, White, Red, Green, etc
Diaphragm Size: We can make it as same as your drawing
Packaging: We can provide you custom plastic bag with low MOQ

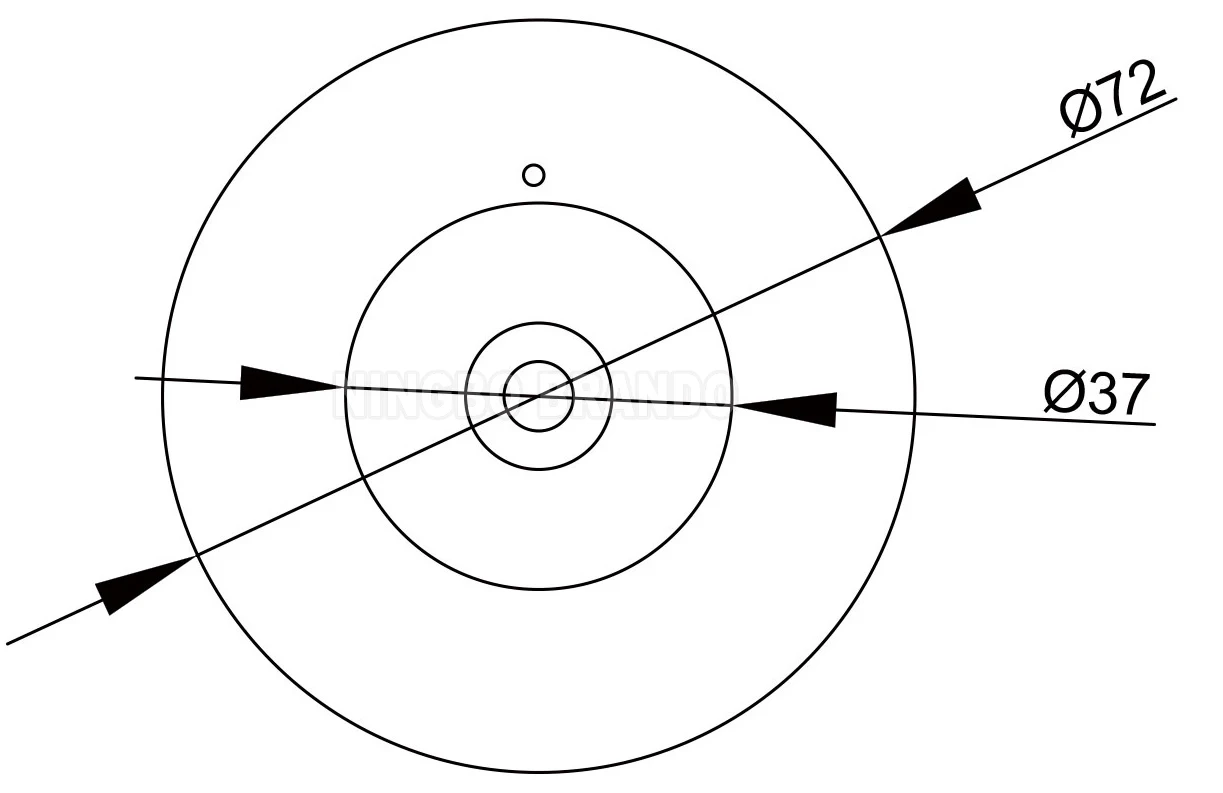

Main Dimension

K2016 K2017 Diaphragm For Dust Collector Pulse Jet Valve RCAC20T3 RCAC20ST3 RCAC20DD3

K2016, K2017

Ordering Code

Ordering Code of Diaphragm For Goyen Pulse Valve:

Pulse Valve Model		NBR Diaphragm Model	FKM Diaphragm Model	Low Temprature Diaphragm Model
RCA10-6T		K1001	K1002	/
CA20T	RCA20T	K2000 (M1204B) K2002 (M764)	K2007	/
CA20DD	RCA20DD	K2000 (M1204B) K2002 (M764)	K2007	/
CA25T	RCA25T	K2501 (M1183B) K2502 (M736)	K2503 (M1887)	K2504
CA25DD	RCA25DD
CAC25FS	RCA25FS
CA25MM	RCA25MM
CA32T	RCA32T	K2500 (M1183) K2522 (M736)	K2503 (M1887)	/
CA35T	RCA35T	K3500 (M1581)	K3501	K3502 (M1591)
CA40T	RCA40T	K4000 (M1182)	K4007	/
CA40MM	RCA40MM	K4000 (M1182)	K4007	/
CA45T	RCA45T	K4502 (M2162) K4504 (M2187)	K4503	K4522
CA45DD	RCA45DD
CA45FS	RCA45FS
CA40MR	RCA40MR
CA50T	RCA50T	K5004 (M1638A) K5005 (M1639A)	K5000	/
CA62T	RCA62T	K5004 (M1638A) K5005 (M1639A)	K5000	/
CA76T	RCA76T	K7600	K7601	/
CA76MM	RCA76MM
CA76MR	RCA76MR
CA102MM	RCA102MM	K10200	K10201	/
CA62MR	RCA62MR	K7604	K7602	/
RCA20M		K2003 (M1174B)	/	/
RCAC20T3, ST3, DD3, FS3		K2016	K2017	/
RCAC25T3, DD3, FS3		K2529	K2530
RCAC25FH3		K2531	/	/

Pulse Valve Model		Shockwave Diaphragm Model	FKM Diaphragm Model	/
RCAC20T4, ST4, DD4, FS4		K2034	K2033	/
RCAC25T4, ST4, DD4, FS4		K2546	K2551	/
RCAC25FH3		K2545	/	/
RCAC25T3, DD3, FS3		K2549	/	/
