K7600 K7601 K7602 K7604 Diaphragm For 3" Pulse Valve Repair Kit CA76T CA76MM

Name: K7600 K7601 K7602 K7604 Diaphragm For 3quot Pulse Valve Repair Kit CA76T CA76MM
Brand: Brando
Price: 1 USD

Wholesale K7600 K7601 K7602 K7604 Diaphragm For 3" Pulse Valve Repair Kit CA76T CA76MM from china suppliers

Brand Name : Brando

Model Number : K7600, K7601

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, PayPal

Supply Ability : 100000 sets per month

Delivery Time : 4 to 7 working days

Packaging Details : Plastic bag, Box, Carton, Pallet

Product Name : Pulse Valve Diaphragm

Ordering Number : K7600, K7601

Diaphragm Material : NBR, Viton

Seat Material : Rubber, Nylon

1 Set : 1x Big Diaphragm, 1x Small Diaphragm, 2x Springs

Fitted Pulse Valve Model : CA76T, RCA76T, CA76MM, RCA76MM

Seat OD : 102mm

Diaphragm OD : 200mm

Contact Now

K7600 K7601 K7602 K7604 Diaphragm For 3" Pulse Valve Repair Kit CA76T CA76MM

Products Description

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

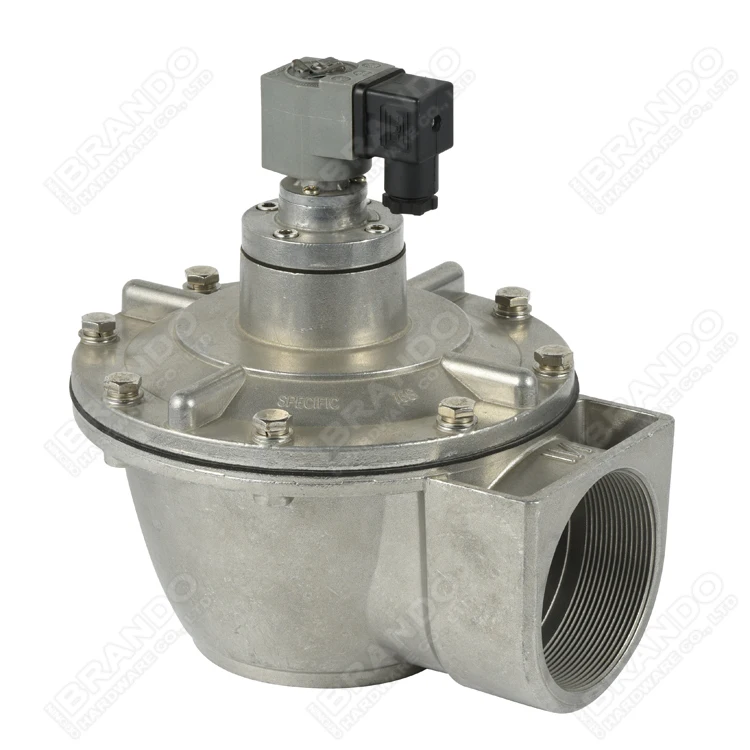

K7600, K7601 Diaphragm for Goyen pulse valve CA76T, RCA76T, CA76MM, RCA76MM; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse valves are the "switch" for compressed air in the dust clean blowing system of the pulse bag filter. It is used to control the release of air pulses in the cleaning cycle. When the dust collector control board starts the cleaning cycle, it sends an electrical signal to the solenoid valve, and then activates the pulse valve. Inside the pulse valve, the rubber diaphragm opens and closes to release the compressed air stored in the air header. At this time, the air enters the blowing pipe above the filter through the valve, and then enters the filter down to clean the filter bag.

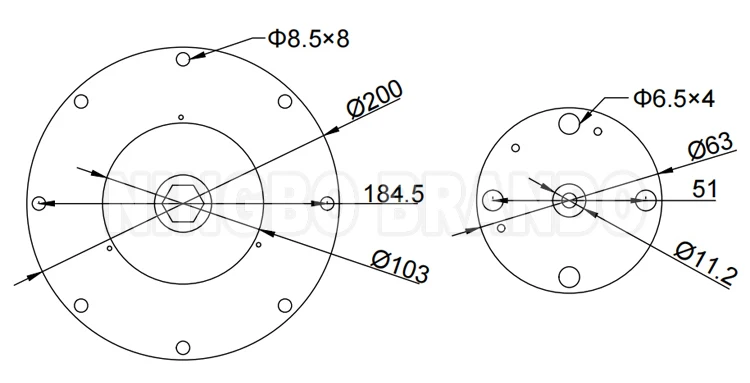

Main Dimension

K7600 K7601 K7602 K7604 Diaphragm For 3" Pulse Valve Repair Kit CA76T CA76MM

K7600, K7601, K7602, K7604

Ordering Code

Ordering Number of Diaphragm For Goyen Pulse Valve:

Pulse Valve Model		NBR Diaphragm Model	FKM Diaphragm Model	Low Temprature Diaphragm Model
RCA10-6T		K1001	K1002	/
CA20T	RCA20T	K2000 (M1204B) K2002 (M764)	K2007	/
CA20DD	RCA20DD	K2000 (M1204B) K2002 (M764)	K2007	/
CA25T	RCA25T	K2501 (M1183B) K2502 (M736)	K2503 (M1887)	K2504
CA25DD	RCA25DD
CAC25FS	RCA25FS
CA25MM	RCA25MM
CA32T	RCA32T	K2500 (M1183) K2522 (M736)	K2503 (M1887)	/
CA35T	RCA35T	K3500 (M1581)	K3501	K3502 (M1591)
CA40T	RCA40T	K4000 (M1182)	K4007	/
CA40MM	RCA40MM	K4000 (M1182)	K4007	/
CA45T	RCA45T	K4502 (M2162) K4504 (M2187)	K4503	K4522
CA45DD	RCA45DD
CA45FS	RCA45FS
CA40MR	RCA40MR
CA50T	RCA50T	K5004 (M1638A) K5005 (M1639A)	K5000	/
CA62T	RCA62T	K5004 (M1638A) K5005 (M1639A)	K5000	/
CA76T	RCA76T	K7600	K7601	/
CA76MM	RCA76MM
CA76MR	RCA76MR
CA102MM	RCA102MM	K10200	K10201	/
CA62MR	RCA62MR	K7604	K7602	/
RCA20M		K2003 (M1174B)	/	/
RCAC20T3, ST3, DD3, FS3		K2016	K2017	/
RCAC25T3, DD3, FS3		K2529	K2530
RCAC25FH3		K2531	/	/

Pulse Valve Model		Shockwave Diaphragm Model	FKM Diaphragm Model	/
RCAC20T4, ST4, DD4, FS4		K2034	K2033	/
RCAC25T4, ST4, DD4, FS4		K2546	K2551	/
RCAC25FH3		K2545	/	/
RCAC25T3, DD3, FS3		K2549	/	/
