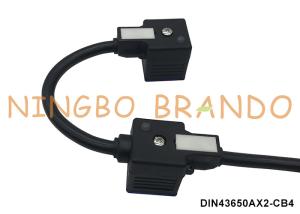

Dual Head DIN43650A Double Solenoid Valve Coil Connector With Molded Cable

  • 1
  • 2
  • 3

Brand Name : BRANDO

Model Number : DIN43650AX2-CB

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 200pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 10 to 15 working days

Packaging Details : Plastic Bag, Carton, Pallet

Product Name : Connector

Type : DIN43650A

Contact Distance : 18mm

Protection Class : IP67

First Head Pole No : 2P+E

Second Head Pole No : 3P+E

Led Indicator : With

Cable Jacket Material : PVC (Standard), PUR (Optional)

Main Cable Length : 100cm (can be customized)

Head Distance : 15cm (can be customized)

Screw : M3x30mm

Max Current : 10A

Contact Resistance : ≤5mΩ

Working Voltage : AC, DC

Contact Now

Dual Head DIN43650A Double Solenoid Valve Coil Connector With Molded Cable

BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.

Features:

1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent

Technical Data:

DIN Type
DIN43650A
Contact Distance
18mm
First Head Pole Number
2 Poles + Ground
Second Head Pole Number
3 Poles + Ground
Max Current
10A
Contact Resistance
≤5mΩ
Screw
M3x30mm
Max Conductor Size
3x1.5mm²
Protection Class
IP67
Working Voltage
AC, DC
Head Distance
15cm (can be customized)
Cable Jacket Material
PVC (Standard), PUR (Optional)
Main Cable Length
100cm (can be customized)

Main Dimension:

Dual Head DIN43650A Double Solenoid Valve Coil Connector With Molded Cable

Our Production:

Dual Head DIN43650A Double Solenoid Valve Coil Connector With Molded Cable
