FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion

  • 1
  • 2

Brand Name : BRANDO

Model Number : FDF11A

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 300pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000pcs per month

Delivery Time : 10 to 15 working days

Packaging Details : Box, Carton, Pallet

Product Name : Refrigeration Solenoid Valve

Port Size : 1/2'' (12.7mm OD)

Orifice Size : 11mm

Kv : 2.4m³/h

Min. OPD : 0.02MPa

Max. OPD : 2.8MPa

MOP : 4.5MPa

Function : 2 Way Normally Closed

Voltage : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Application : Air Conditioner, Heat Pump, etc

Contact Now

FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion

FDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.

Technical Data:

Model No
FDF2A
FDF2.5A
FDF3A
FDF4A
FDF6A
FDF8A
FDF11A
FDF13A
Actuation
Direct
Pilot
Seat
(mm)
1.9
2.5
2.7
4.0
5.8
8.0
11.0
13.0
Kv
(m³/h)
0.08
0.2
0.26
0.3
0.56
1.29
2.4
3.44
Max. OPD
(MPa)
3.4
3.4
3.4
3.4
3.4
2.8
2.8
2.8

Min. OPD

(MPa)
0
0.01
0.01
0.01
0.01
0.01
0.02
0.02
MOP
(MPa)
4.5
Normal Position
NC

Tube OD

(inch)
1/4''
1/4''
5/16''
1/4''
5/16''
3/8''
1/2''
5/8''

Tube OD

(mm)
6.35
6.34
7.94
6.35
7.94
9.52
12.7
15.88

Main Dimension:

FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion

Model No
Dimension (mm)
D
L
L1
L2
FDF2A
6.35
67
32
34
FDF2.5A
6.35
85
38
38
FDF3A
7.94
81
35
36
FDF4A
6.35
81
35
38
FDF6A
7.94
81
35
36
FDF8A
12.7
114
62
62
FDF11A
12.7
113
61
61
FDF13A
15.88
114
62
62

Our Production:

FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion

Related Products:

FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion

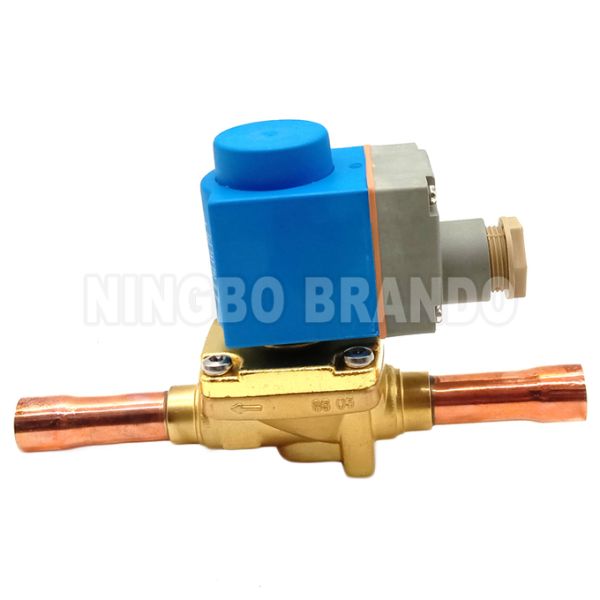

Refrigeration Solenoid Valve 4 Way Reversing Valve Expansion Valve Hot Gas Bypass Valve
FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion FDF11A14 12.7mm OD SANHUA Type Solenoid Valve For Refrigerantion

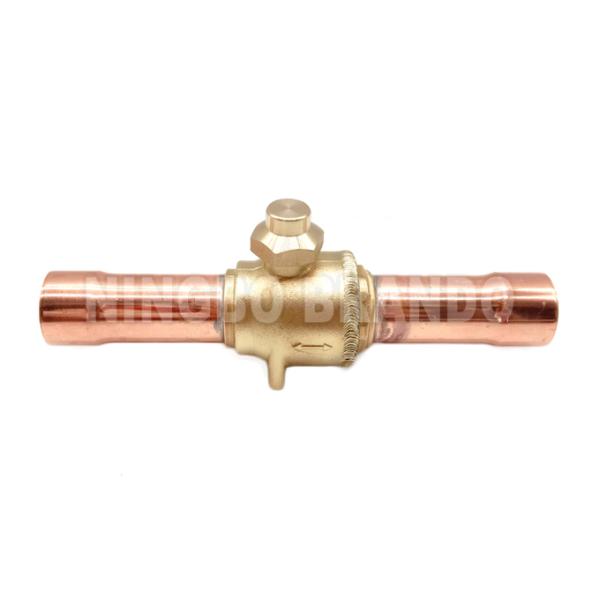

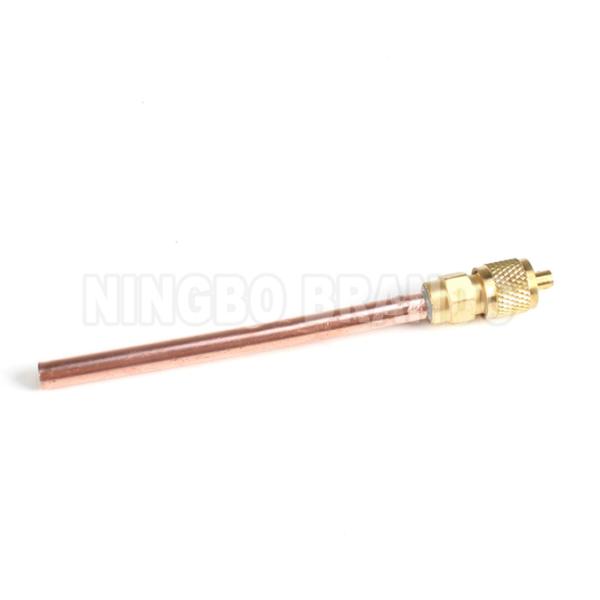

Ball Valve Check Valve Sight Glass Access Valve
